BIOHORIZONS / TAPERED PRO CONICAL

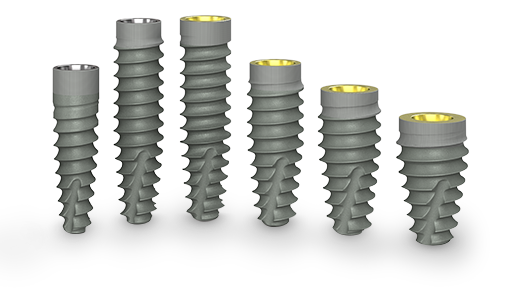

Tapered Pro Conical Dental Implant
深錐連接．高效穩定． 即刻治療
結合 Conical Connection 與 Tapered Pro 植體設計，針對即刻治療需求打造，兼具手術效率、植體穩定性與軟硬組織維持，提供可預期的臨床表現。
PRODUCT VIDEO
Streamlined clinical performance
See the Tapered Pro Conical system in action through the BioHorizons product video.
Video courtesy of BioHorizons.
FULL-ARCH WORKFLOW

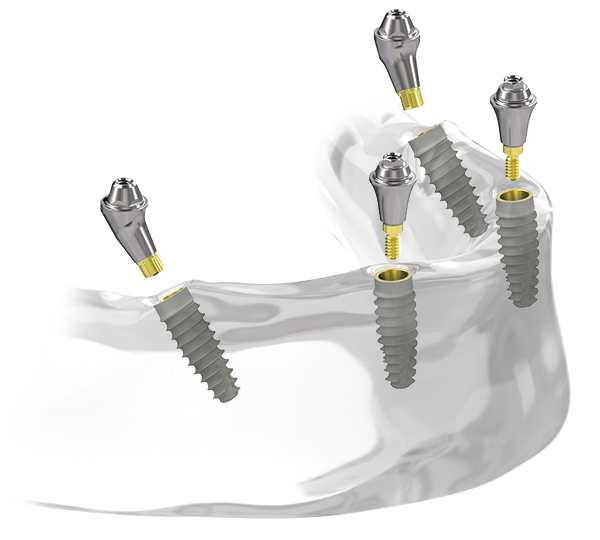

Fuel your full-arch workflow
The 3.8 mm implant offers Narrow and Regular connection options. This expanded range supports a consistent restorative platform across full-arch cases.
A simplified prosthetic workflow.
One restorative platform lets abutments be used across implant sites, making full-arch planning and restoration more straightforward.
This means:
- Shorter chairside time
- Leaner inventory and lower costs
- Fewer component mix-ups
- Simpler laboratory coordination
- Quicker prosthesis production
One color-coded prosthetic platform across full-arch cases
DESIGN CORE
設計核心
Eight engineering details across the connection, implant body and restorative platform.
01 / 08

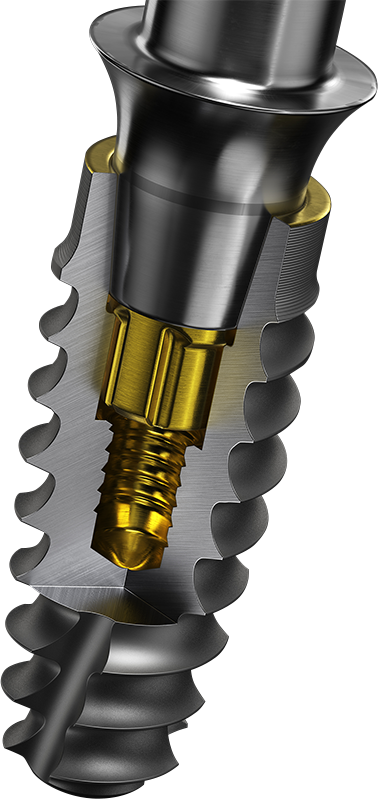

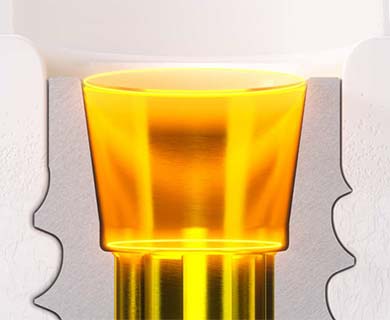

7.5° conical connection
A long conus and 7.5° interface are engineered for stable positioning and less micromovement.
02 / 08

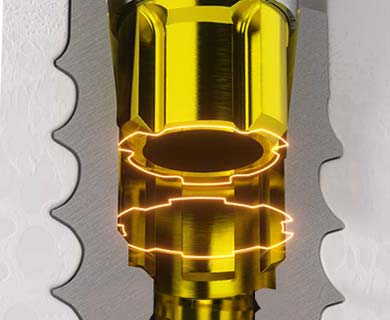

6-cam connection
Six orientation positions support flexible abutment alignment and direct-drive insertion.
03 / 08

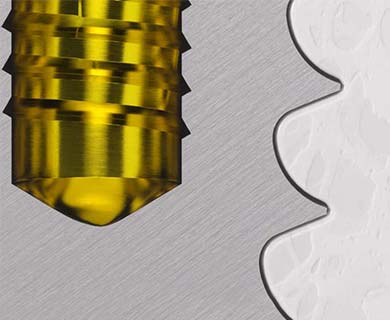

aggressive threadform
Deep buttress threads are designed to help achieve primary stability.
04 / 08
two prosthetic platforms
Two platform choices simplify restorative planning and inventory.
05 / 08

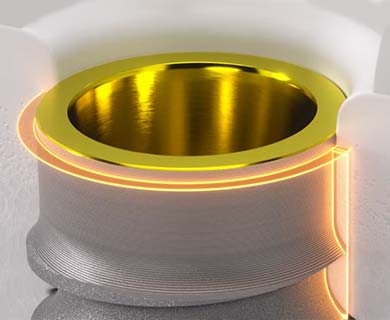

platform-switching
Platform switching supports crestal bone preservation and esthetic restoration.
06 / 08
flat implant shoulder
Restorative parts can seat on the flat shoulder while the conical interface remains available for the final abutment.
07 / 08
Laser-Lok® zone & reduced collar
A Laser-Lok treated zone supports connective tissue attachment; the reduced collar is designed to preserve surrounding bone.
08 / 08

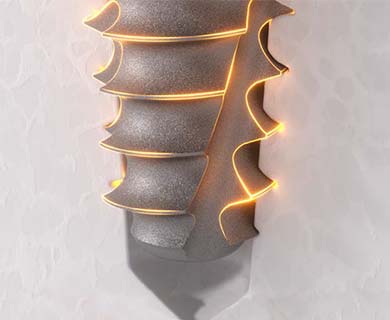

end cutting design
Self-tapping helical flutes are designed for controlled placement.
Specifications³
body-type
tapered
connection
conical connection
placement
bone level
surface treatment
Laser-Lok collar • RBT body
delivery options
mount-free

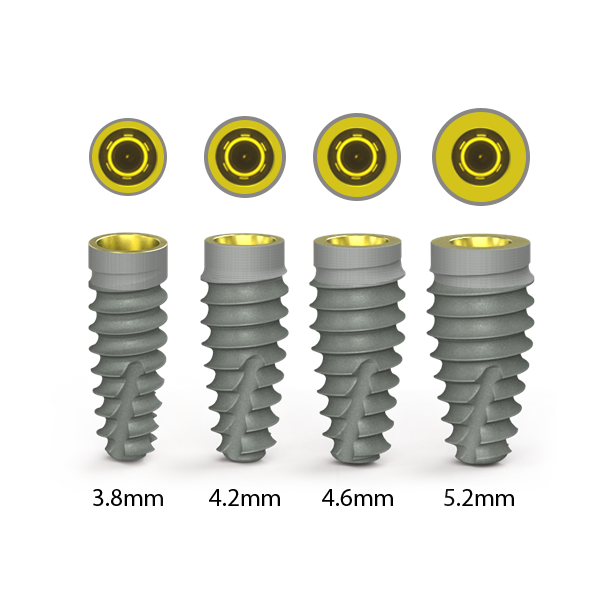

platform diameters
Narrow • Regular
body diameters
3.3mm • 3.8mm • 4.2mm • 4.6mm • 5.2mm
lengths
7.5mm • 9.0mm • 10.5mm • 12.0mm • 15.0mm • 18.0mm
3 Implants are not available in all platform diameter, body diameter and length configurations. Please visit BioHorizons Store for full availability.
PROSTHETIC SOLUTIONS

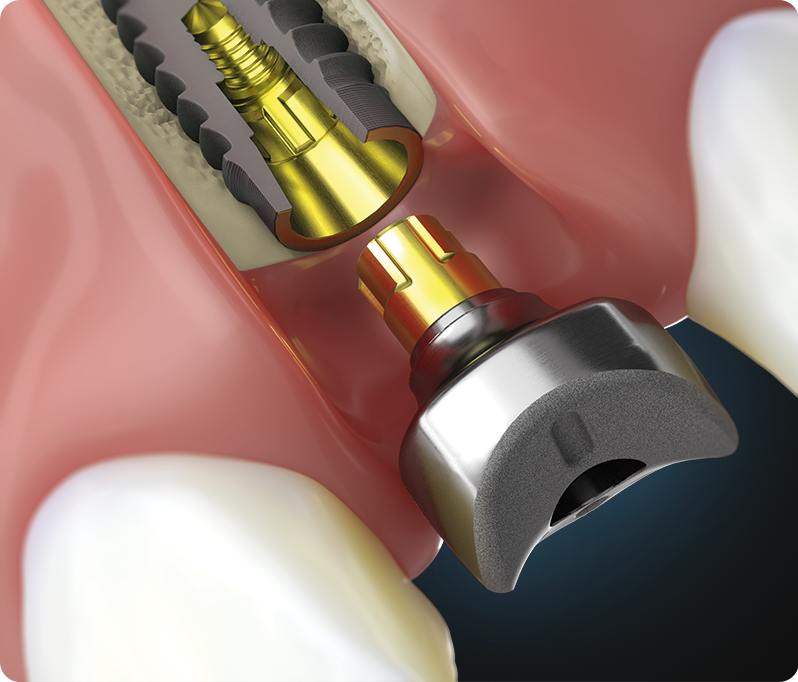

SmartShape® Healers
簡化流程，兼具數位與傳統，實現卓越美學成果。
Anatomically shaped healing abutments integrate with digital and traditional restorative workflows.
PRODUCT LITERATURE
產品目錄
Original English technical literature and surgical references from BioHorizons.
原廠資訊：
